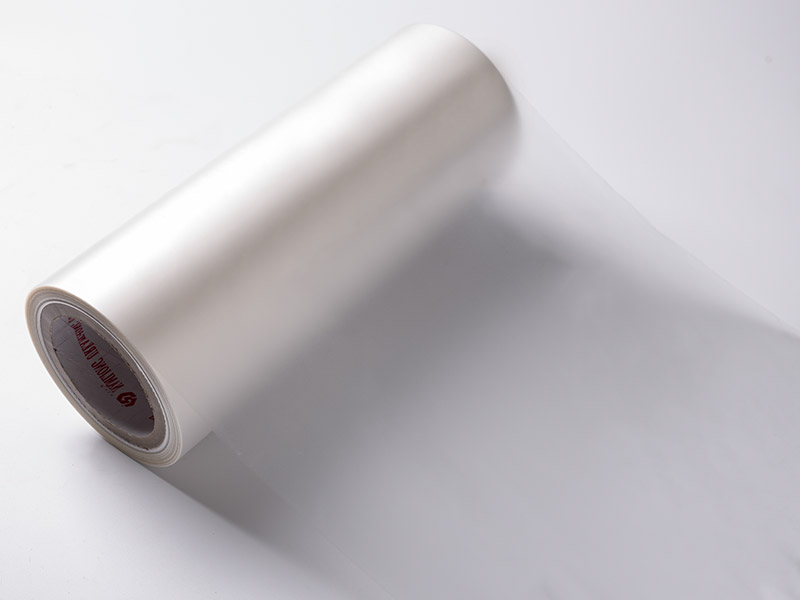

PES / POLYESTER MEMBRANE

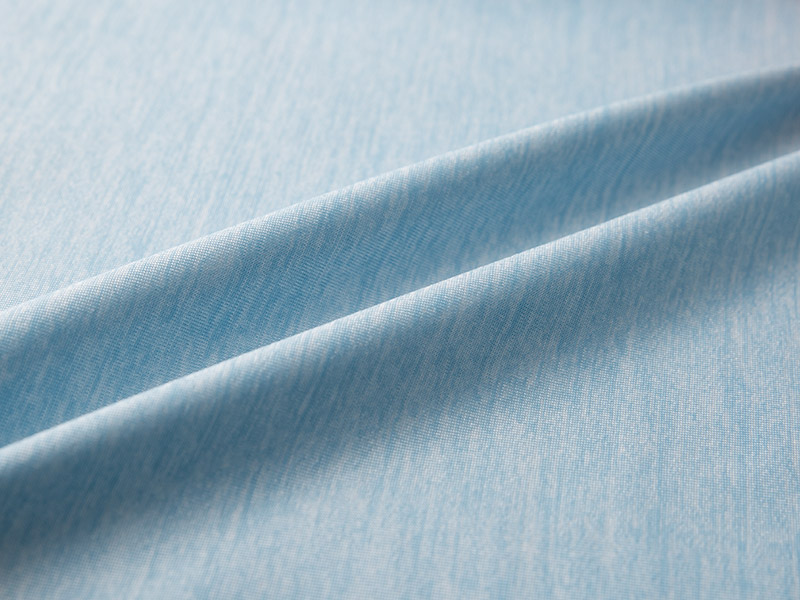

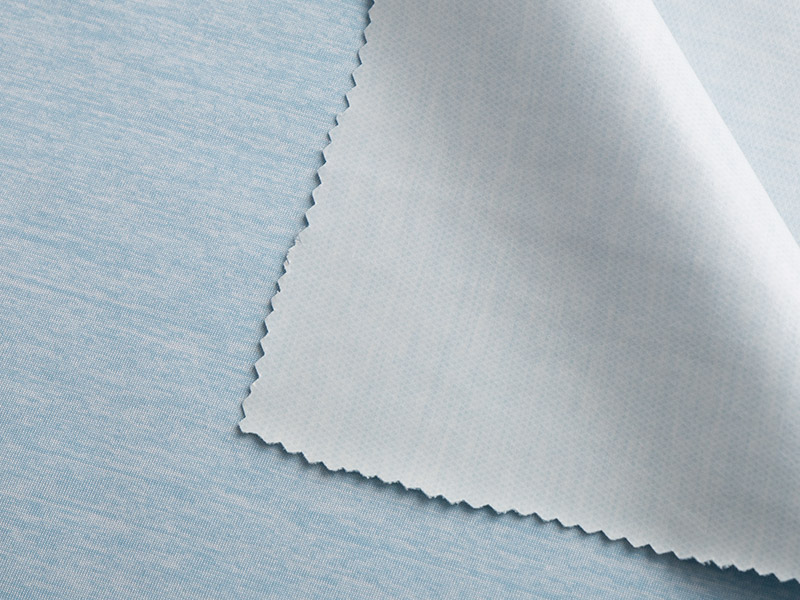

PES film , is short of polyester film , also called TPEE film or PBT film .It made of TPEE granules via special procesdure including blowing and calendaring , it is a kind of green material , and also with high moisture permeability and waterproofness , good temperature resistance , when laminated with polyester fabric , the used cloth can be recycled directly without separate film from fabric , which meets GRS standard .
Physical Properties Report
| UREAMAX® |
|
Physical Properties/Test Method |
| PES /TPEE film |
Specification |
Thickness
（mm） |
M.P.R（mmH2O） |
M.V.P
（g/㎡/day) |
M.V.P
（g/㎡/day) |
M.V.P
（g/㎡/day) |
Hardness
(shore A) |
Tensile Strength
(kg/c㎡） |
Tear Strength
(kg/c㎡） |
Elongation（%） |
Characteristics and Applications |
|
Style NO |
Type |
Color |
ASTM D1777 |
JIS L 1092 B |
ASTM E96 BW 1995 |
JIS L 1099 B-1 |
JIS L 1099 A-1 |
ASTM D2240 |
ASTM D412 |
ASTM D624 |
ASTM D412 |
| PES / Polyester Transparent film |
TPL-4001S |
60" |
Transparent |
0.012~0.02 |
10000 |
>8000 |
>130000 |
>3500 |
88±3 |
>120 |
|
>50 |
Waterproof, moisture permeable, outdoor, jacket, storm suit, ski suit, etc |
| TPL-4001S |
60" |
Transparent |
0.03 |
10000 |
>5000 |
>30000 |
>3000 |
88±3 |
>120 |
|
>50 |
Waterproof, moisture permeable, outdoor, jacket, storm suit, ski suit, etc |
| PES /Polyester White film |
TPL--4001WS |
60" |
White |
0.012~0.02 |
10000 |
>7000 |
>100000 |
>3000 |
88±3 |
>100 |
|
>50 |
Waterproof, moisture permeable, outdoor, jacket, storm suit, ski suit, etc |
| TPL-4001WS |
60" |
White |
0.03 |
10000 |
>4000 |
>20000 |
>2500 |
88±3 |
>100 |
|
>50 |
Waterproof, moisture permeable, outdoor, jacket, storm suit, ski suit, etc |
| PES / Polyester Black film |
TPEE-4001BS |
60" |
Black |
0.012~0.02 |
10000 |
>7000 |
>100000 |
>3000 |
88±3 |
>100 |
|
>50 |
Waterproof, moisture permeable, outdoor, jacket, storm suit, ski suit, etc |
| TPEE-4001BS |
60" |
Black |
0.02 |
10000 |
>4000 |
>20000 |
>2500 |
88±3 |
>100 |
|
>50 |
Waterproof, moisture permeable, outdoor, jacket, storm suit, ski suit, etc |
| *The data and information provided are for reference only and are not guaranteed, please test the TPU film before the final application |
Nanxiong TPEE film has the characteristics of waterproof and moisture permeability, windproof and keeping warm, green and environmental protection, high and low temperature resistance, wear resistance and aging resistance. It is widely used in casual clothing, cold-proof clothing, protective clothing, outdoor sports clothing, bags, life-saving products, aquatic products, outdoor products, sports products and other industries.
Application
NAM LIONG has become a large international conglomerate with bases all over the world. The basis of NAM LIONG is composed of businesses in three major industries – Sport and recreation manufacturing, outdoor activities equipment manufacturing and safety protection equipment manufacturing. Functional Material Dept - One important marketing department with more than 60 staff, professional TPEE Membrane supplier, manufacturer & factory in China. Professional and independent production of various high polymer functional membranes. With advanced equipment, professional production technology, mature R & D team, and excellentservice and quality, our products are sold in Chinese mainland, Japan, Korea, Russia, Southeast Asia, Europe and America. Welcome to visit our company and factory. Custom TPEE Membrane direct from us, we also wholesale in bulk. Low MOQ. OEM/ODM TPEE Membrane is welcomed.
Recommended Products
-
TPU Membrane
Rich Production Experience
Professional research on eco-materials for nearly 50 years, we have always adhered to seamless service and built a professional team to timely visit and communicate with cus...
-
GRS & Bluesign TPU Membrane
We passed GRS global certification recyclable standard in 2019. We can offer TPU membrane and TPEE membrane with 50%,75% and 100% recycled materials, and maintain excellent physical properties which c...
-
TPEE Membrane
Physical Properties Report
UREAMAX®
Physical Properties/Test Method
TPU film
Specification
Thickness（mm）
M.P.R（mmH2O）
M.V.P（g/㎡/day)
M.V.P（g/㎡/day)
M.V.P（g/㎡/day)
Hardness(shore A)
Tensile S...
-
PU Photoluminescence Membrane
Physical Properties Report
UREAMAX®
Physical Properties/Test Method
TPU film
Specification
Thickness（mm）
M.P.R（mmH2O）
M.V.P（g/㎡/day)
M.V.P（g/㎡/day)
M.V.P（g/㎡/day)
Hardness(shore A)
Tensile S...
-
PU Biomass Membrane
Introduction to PU biomass technology
In January 2012, Taiwan Nanliang Group officially obtained DuPont Tate & Lyle bio products from the United States ™ The company developed susterra, which is...
-
Nylon Film & Nylon Membrane
Physical Properties Report
UREAMAX®
Physical Properties/Test Method
Nylon membrane
Specification
Thickness（mm）
M.P.R（mmH2O）
M.V.P（g/㎡/day)
M.V.P（g/㎡/day)
Hardness(shore A)
Tensile Strength(k...
NANXIONG NEWS
-
2024-01-08 15:24:23
TPU membrane offers several advantages, making it a popular choice in various industries. Here are some of its key advantages:
Flexibility and Elasticity: TPU membrane is highly flexible and exhibits...
-
2024-01-08 15:48:33
The water treatment industry is constantly seeking new technologies to improve the efficiency and effectiveness of water treatment processes. One of the recent advancements in this field is the use of...
-
2024-01-08 15:48:33
As a kind of new eco-friendly material , TPU is more and more popular and gradually replace of PVC , and widely used in various industries . Via special procedures of mixing and extruding, blowing ,ro...
-
2024-01-08 15:48:33
TPU, abbreviation ofthermoplastic polyurethane, is an environmentally friendly material, it has good performanceof elasticity , resistance to oil ,grease , abrasion and so on , TPU polymers meet the m...
-
2024-01-08 15:48:33
FeaturesofTPUWaterproof&Breathablemembrane
Ø Excellentwaterproofandmoisturepermeability
Ø Hightensilestrengthand elongation
Ø low temperature resistance to -40...
-
2024-01-08 15:48:33
TPEE, as a kind of PET (Polyethylene terephthalate, known as polyester resin), has excellent melt stability and sufficient thermoplasticity, so it has good processability, and can be processed via var...
Industry Knowledge
What is TPEE film ?
TPEE film is a non-porous hydrophilic film, which has excellent moisture permeability and high waterproof strength, and will not be clogged due to pollution. In addition, after laminating polyester fabric, a single material can be fully recycled and reused.
What is the features of TPEE film ?
TPEE film is a film processed from thermoplastic polyester elastomer. It has the advantages of both the elasticity of rubber material and the strength of engineering plastic material. It has high waterproof and moisture permeability, and it also has low temperature and high temperature resistance. , good recyclability and other physical properties, are widely used in the lamination processing of outdoor clothing fabrics, and the composite processing of bedding fabrics.
What is relationship between polyester film / PET film /PBT film and TPEE film ?
PET ，Polyethylene terephthalate, Polyester film, PET film, PBT film and TPEE film are different names for the same film.
PET, Polyethylene terephthalate, namely polyethylene terephthalate, commonly known as polyester resin, is the most important variety of thermoplastic polyester, mainly used in fibers, films and engineering plastics, and blow molding products, etc. PET fibers are mainly used In the textile industry, TPEE is a kind of PET.
How is TPEE film recycled ? TPEE?
As a kind of polyester film, when the polyester fabric is laminated, a single material can be completely recycled and recycled directly, that is, the damaged polyester clothes or bedding can be recycled directly without separating the film from the fabric, free of classification, easy Recycle.
