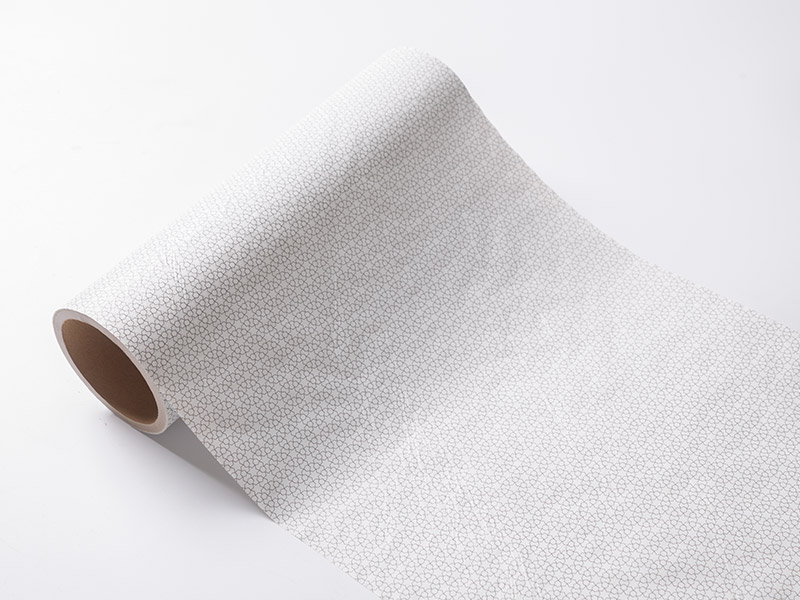

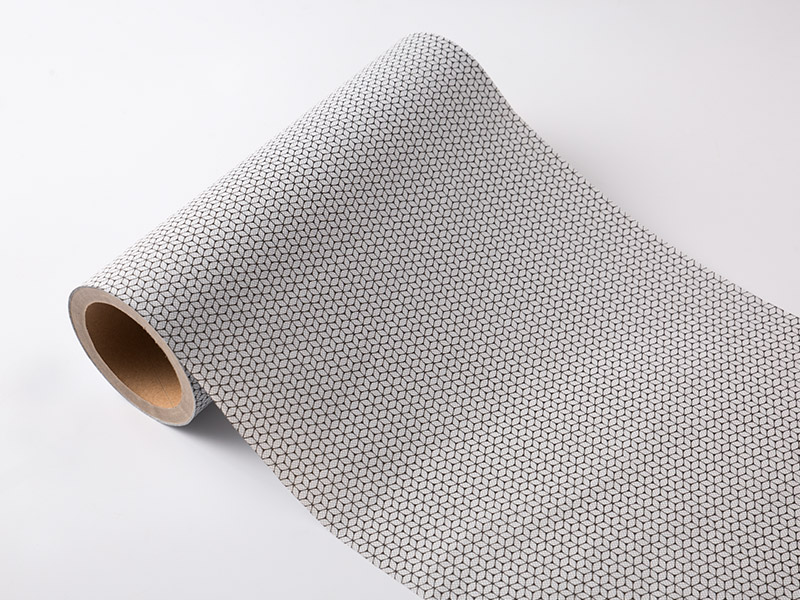

Printed PU /TPU film

Via special printing processing, TPU film can be printed with various kinds of patterns with solid color or multiful colors , which will not only make it look gorgeous and fashional , but also maintain good waterproofness and moisture permeability.  It can be laminated with one layer of fabric  to make the fabric look fashional but also functional , this fabric is mostly used for fashional garments or some lightweight outdoor garments.

Physical Properties table

Physical Properties/Test Method
Product Name Thickness
(mm)
Width
(mm)
W.P.R
(mmH2O)
防水度 M.P.R(mmH2O) 透湿度M.V.P(g/㎡/day) 透湿度M.V.P(g/㎡/day)
Description Article # Color ASTM D1777 JIS L 1092 B  JIS L 1092 B  ASTM E96 BW 2000 JIS L 1099 B-1
Printed TPU film -Low moisture permeability P-SL201S Transparent 0.015mm-0.03mm 1.55m >10000 - - -
P-SL201WS White 0.015mm-0.03mm 1.55m >10000 - - -
P-SL201B Black 0.015mm-0.03mm 1.55m >10000 -
Printed TPU film -Medium moisture permeability P-TME103S Transparent 0.015mm-0.025mm 1.55m >10000 - - >20000
P-TME103WS White 0.015mm-0.025mm 1.55m >10000 - - >20000
Printed PU film -Low moisture permeability P-PU-170701S Transparent 0.015mm-0.03mm 1.55m >10000 - - -
P-PU-170701WS White 0.015mm-0.03mm 1.55m >10000 - - -
Printed PU film -Medium moisture permeability P-PU-170710S Transparent 0.015mm-0.025mm 1.55m >10000 - - >50000
P-PU-1707010WS White 0.015mm-0.025mm 1.55m >10000 - - >50000
Printed PU film -High moisture permeability P-PU-170709S Transparent 0.015mm-0.025mm 1.55m >10000 >80000
P-PU-170709WS White 0.015mm-0.025mm 1.55m >10000 >80000

NAM LIONG has become a large international conglomerate with bases all over the world. The basis of NAM LIONG is composed of businesses in three major industries – Sport and recreation manufacturing, outdoor activities equipment manufacturing and safety protection equipment manufacturing. Functional Material Dept - One important marketing department with more than 60 staff, professional TPU Membrane supplier, manufacturer & factory in China. Professional and independent production of various high polymer functional membranes. With advanced equipment, professional production technology, mature R & D team, and excellentservice and quality, our products are sold in Chinese mainland, Japan, Korea, Russia, Southeast Asia, Europe and America. Welcome to visit our company and factory. Custom TPU Membrane direct from us, we also wholesale in bulk. Low MOQ. OEM/ODM TPU Membrane is welcomed.

Certificate

  • products
  • products
  • products
  • products
  • products
  • products
  • products
  • products
  • products
  • products
  • products
  • products

Recommended Products

  • GRS & Bluesign TPU Membrane

    We passed GRS global certification recyclable standard in 2019. We can offer TPU membrane and TPEE membrane with 50%,75% and 100% recycled materials, and maintain excellent physical properties which c...

  • Bio-based TPU Membrane

    Bio-based TPU film is widely used in garments, home textiles and other fabrics lamination. It is not only waterproof and moisture-permeable, windproof and warm, but also greener and healthier, energy-...

  • PU Membrane

    Physical Properties Report UREAMAX® Physical Properties/Test Method PU film Specification Thickness(mm) M.P.R(mmH2O) M.V.P(g/㎡/day) M.V.P(g/㎡/day) M.V.P(g/㎡/day) Hardness(shore A) Tensile St...

  • Laminate Material

    Product characteristics: High waterproof resistance(TPU film Thickness>0.050MM)Good airtightness Processing methods: High-frequency hot pressing / ultrasonic welding Outdoor sports accessories: dry b...

  • PU Biomass Membrane

    Introduction to PU biomass technology In January 2012, Taiwan Nanliang Group officially obtained DuPont Tate & Lyle bio products from the United States ™ The company developed susterra, which is...

  • PES / POLYESTER MEMBRANE

    Physical Properties Report UREAMAX® Physical Properties/Test Method PES /TPEE film Specification Thickness(mm) M.P.R(mmH2O) M.V.P(g/㎡/day) M.V.P(g/㎡/day) M.V.P(g/㎡/day) Hardness(shore A) Ten...

NANXIONG NEWS

Do You Have Any Question?

Do You Have Any Question? Do You Have Any Question?

Industry Knowledge

Is TPU Membrane porous or not ?

TPU membrane, abbreviation of thermoplastic polyurethane membrane , belongs to non-porous hydrophilic film. Since the membrane itself has no pores, it is naturally waterproof, and also makes the laminated fabric windproof and warm.

what is melting temperature of TPU?

TPU , short of thermoplastic polyurethane , is a kind of new eco-friendly material , one of the most important property is its wide range of temperature resistance , its melting point can reach 160-170, which made it very easy to process and excellent for high-frequency & heat welding .

The difference between TPU membrane and PTFE membrane ?

TPU film is a film made of thermoplastic polyurethane through calendaring , casting, film blowing, coating and other processes. It is a non-porous hydrophilic film with excellent waterproof and moisture permeability properties.

PTFE film is a porous film made by extruding polytetrafluoroethylene rods and strips, and calendering semi-finished products into thin films, stretching and heat setting at a temperature below the melting point , flexible and elastic micro-porous material with high porosity, uniform pore size distribution, and air-permeable and impermeable properties .

How can TPU film be waterproof and moisture-permeable?

TPU film is a non-porous membrane, its moisture permeability is mainly realized by the hydrophilic group of the membrane itself. Depending on the difference in vapor pressure inside and outside the clothes, the steam is transferred from a place with high pressure to a place with low pressure, thus realizing moisture permeability。

What is the difference between air permeability and moisture permeability ?

Air permeability and moisture permeability are two completely different concepts.

Air permeability refers to the porous membrane, which allows moisture to be discharged from the body by its own tiny pore size, so as to keep the body dry.

Water-vapour transmission refers to the non-porous hydrophilic membrane. The membrane itself contains hydrophilic groups, through which the water vapor can penetrate to the cloth surface to play out, thus keeping the human body dry.
